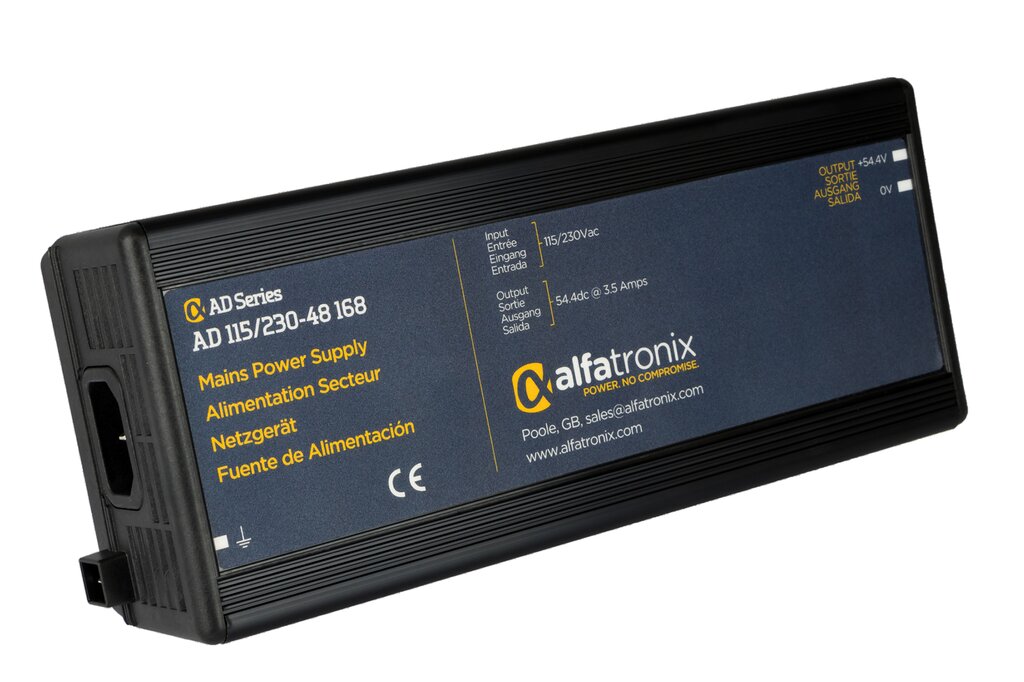

Alfatronix Power Supply AD 115/230V AC- 48V DC 3,5A

Produktnummer
AD11523048168

Alfatronix Power Supply AD 115/230V AC- 48V DC 3,5A

306,43

Alle Preise sind exkl. MwSt

Delivery:

Bitte anrufen wegen Lieferung
Bestellung aufgeben und Kasse abschließen. Wir bieten die Lieferzeit innerhalb von 24 Stunden.

AC-DC Desktop Power supply 48V DC

Input Auto select 85-135V AC and 170-265V AC
Output 54,4V DC – 168 Watt – 3,5A

Ideal for offices, portable site cabins, communication cabins, telephone exchanges, remote antennae sites, ships, oil rigs etc

Input: EU power cord
Output: 6,3mm push-on blade terminals
Ground: Stud with crimp eyelet

Fast installation with T-shaped mounting clip

Green LED indicates output

Alfatronix provides lifetime guarantee

Eingangsspannung115/230V AC
Ausgangsspannung48V DC
Ampere3,5A
Gewicht (kg)0.900
Storage temperature-25°C - 100°C
Operating temperature-25°C - 30°C
Feuchtigkeit (%)95% max, non condensing
Effizienz (%)Typically 83%
ON-DiodeGreen LED
Certifications93/68/EEC The CE marking directive
NormenEN60950, EN55022, EN61204-3
Länge mm225.00
Breite mm87.00
Höhe mm62.00
Montage`Click and fit´ mounting clip
GehäuseAnodized aluminum, glass-filled polycarbonate
Ausgangsanschluss6,3mm push-on blade terminals
Primärer AdapterIEC-320 C14 socket, C13 terminated cordset

Mehr über das Produkt

AD SERIES

MAINS POWER SUPPLIES IN 12V, 24V & 48V CONFIGURATIONS

The AD Series units may be used to supply mobile radios and other appliances from AC mains used in offices, portable site cabins, communication cabins, telephone exchanges, remote antennae sites, ships, oil rigs etc. The units will accept either European 230V AC or US 115V AC inputs and are available as standard in 12V, 24V and 48V output configurations. Input is via a standard IEC-320 C13/14 power cord with UK, European or US mains plugs – please state your requirement.

FAST INSTALLATION

There’s nothing worse than a power supply lying around on the floor. The T-shaped mounting clip, common to many Alfatronix products, allows the power supplies to be installed quickly and simply in many out of the way locations, such as underneath desks or on walls. The 3 point ‘T’ clip can be fitted securely, even on uneven surfaces, quickly and simply, and then the power supply simply ‘clips’ in place.

BATTERY CHARGING REQUIRED?

A fixed voltage battery charging facility is also available with the supplementary loom; P/N AD BB loom. For dedicated battery charging units, please check out our IC Series Intelligent Battery Chargers.

FULL CIRCUIT PROTECTION

The AD Series supplies have transient, overload and overheat protection for reliable operation even in the toughest environments.

HOW TO READ THE PRODUCT CODING AD11523048168

AD AC input & DC output
115230  Denotes auto select US or EU AC input voltage
48  48V nominal – suitable for charging 48V lead acid batteries
168 168W capacity unit
