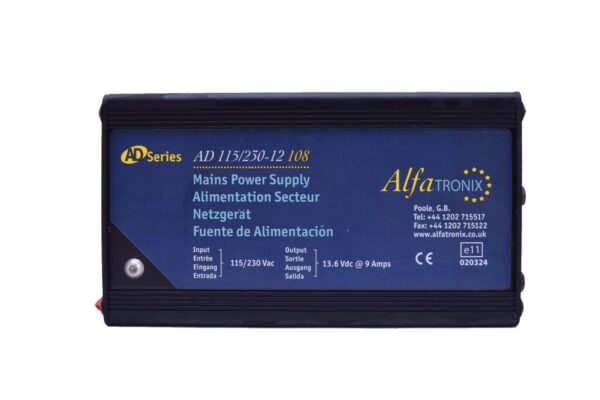

Alfatronix Power Supply AD 115/230V AC - 12V DC 9A
Alfatronix Power Supply AD 115/230V AC – 12V DC 9A
Wird versendet in 1-2 Tage
AC-DC Desktop Power supply 12V DC
Input Auto select 85-135V AC and 170-265V AC
Output 13,6V DC – 108 Watt – 9A
Ideal for offices, portable site cabins, communication cabins, telephone exchanges, remote antennae sites, ships, oil rigs etc
Input: EU power cord

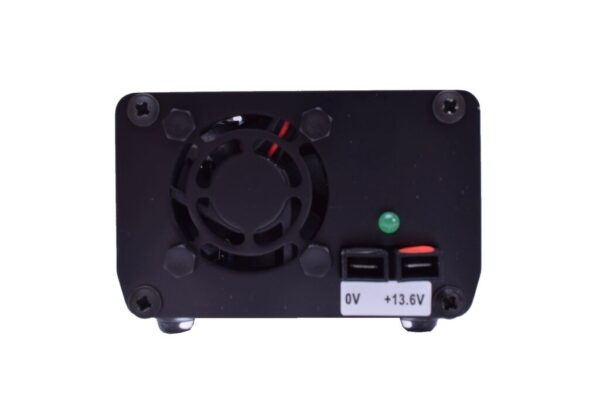

Output: 6,3mm push-on blade terminals
Ground: Stud with crimp eyelet
Fast installation with T-shaped mounting clip
Green LED indicates output
Alfatronix provides lifetime guarantee
Mehr über das Produkt
MAINS POWER SUPPLIES IN 12V, 24V & 48V CONFIGURATIONS
The AD Series units may be used to supply mobile radios and other appliances from AC mains used in offices, portable site cabins, communication cabins, telephone exchanges, remote antennae sites, ships, oil rigs etc. The units will accept either
European 230Vac or US 115Vac inputs and are available as standard in 12V, 24V and 48V output configurations. Input is via a standard IEC-320 C13/14 power cord with UK, European or US mains plugs – please state your requirement.
There’s nothing worse than a power supply lying around on the floor. The T-shaped mounting clip, common to many Alfatronix products, allows the power supplies to be installed quickly and simply in many out of the way locations, such as underneath desks or on walls. The 3 point ‘T’ clip can be fitted securely, even on uneven surfaces, quickly and simply, and then the power supply simply ‘clips’ in place.
BATTERY CHARGING REQUIRED?
A fixed voltage battery charging facility is also available with the supplementary loom; P/N AD BB loom. For dedicated battery charging units, please check out our IC Series Intelligent Battery Chargers (page 12).
FULL CIRCUIT PROTECTION
The AD Series supplies have transient, overload and overheat protection for reliable operation even in the toughest environments.
HOW TO READ THE PRODUCT CODING AD11523012108
|AD||AC input & DC output|
|115230||Denotes auto select US or EU AC input voltage|
|12||12V nominal – suitable for charging 12V lead acid batteries|
|108||108W capacity unit|
